Machine tool specialists · Jet Park, Boksburg

We put worn machine tools back to accuracy.

We regrind, rebuild and hand scrape lathes, milling machines, CNC machining centres and boring mills, horizontal and vertical, here in Jet Park. The firm dates from 1956 and this has been our trade without a break since the late 1970s. We face slideways with turcite or vesconite and set the geometry to Schlesinger standards.

Telephone +27 82 701 9386

4 000 mm

Maximum grinding job length

Grinding to: 4 000 mm
Acceptance: SCHLESINGER
On the floor since: 1956
Slideway facings: TURCITE / VESCONITE
Location: JET PARK, BOKSBURG

Capabilities

Work on the metal

Grinding

4 000 mm

We do high-precision industrial grinding and keep several machines on it. Jobs run up to four metres in length.

01 0002 0003 0004 000

Maximum grinding job length · mm

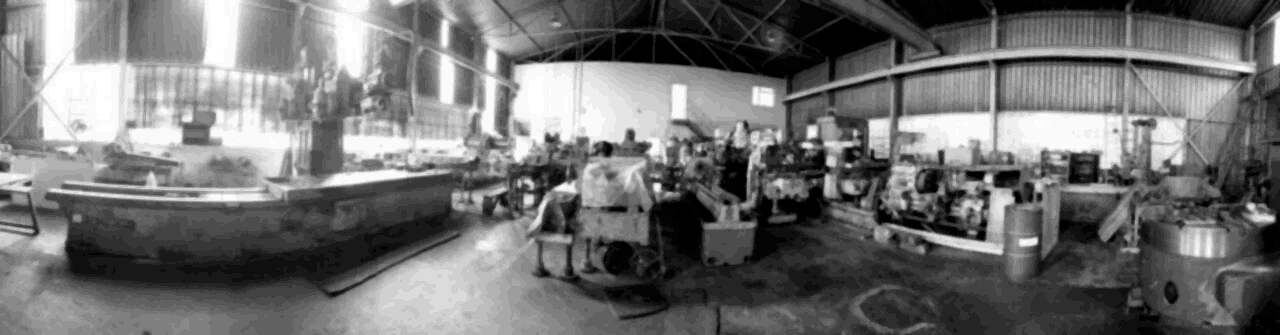

A long machine bed in the foreground of a workshop floor, with a row of machines under a corrugated roof behind it. — Our workshop. Factory No. 3, Dartfield Road, Jet Park.

Rebuilding of machine tools

SCHLESINGER

A full rebuild, back to the machine's original condition and accuracy. We fit the slideways with turcite or vesconite and set the geometry to Schlesinger standards.

Scraping

SCHLESINGER

We hand scrape slideways to Schlesinger standards, for true movement and accuracy.

Also on the schedule

Repairs of machine tools: We analyse the machine, find the fault and repair it.
Preventative maintenance: We maintain machines to a plan, so they keep running safely and do not fail early.
Professional consulting: We advise on buying, selling and modification.
Buying and selling: We buy machine tools, refurbish them and sell them.

How a rebuild works

01 Blue

We coat a master surface with engineer's blue and rub it against the work. The dye only takes where the metal stands proud, so the blue marks are a map of the high spots.

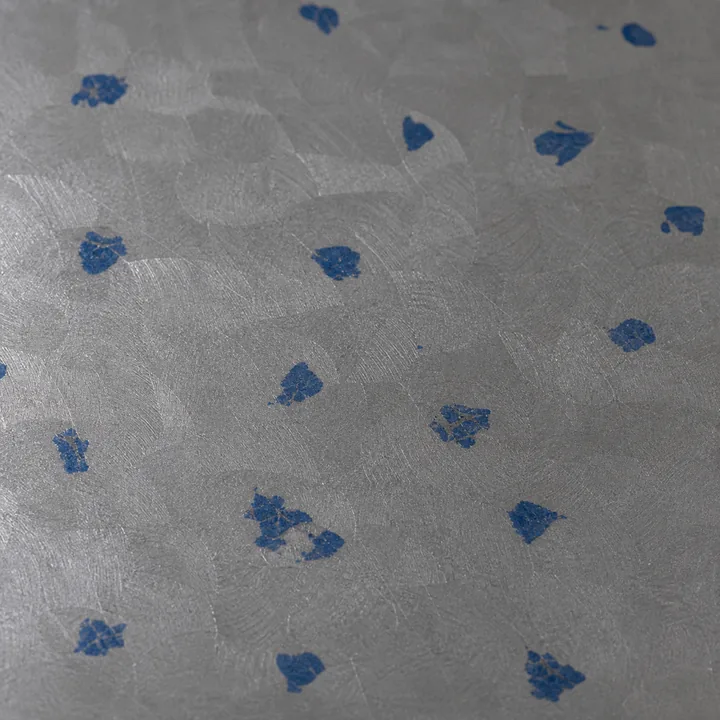

Close-up of a hand-scraped cast-iron surface early in the work: about eighteen large patches of blue marking compound sitting on the high spots, with bare grey iron between them. — Only the high spots take the blue. Once they are scraped down the blue comes up across the whole face: that is bearing.

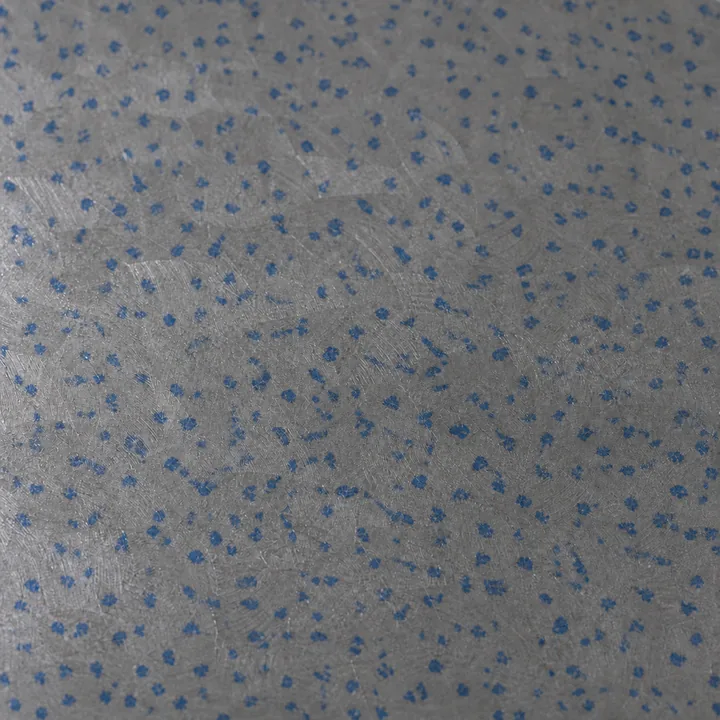

Close-up of a hand-scraped cast-iron surface later in the work: hundreds of small blue specks scattered closely and evenly over the grey scraped iron, which is still most of the face. — Only the high spots take the blue. Once they are scraped down the blue comes up across the whole face: that is bearing.

02 Scrape

We take those high spots off by hand with a scraper, a few microns at a pass. The crescent flake pattern it leaves is what holds the oil film a slideway runs on.

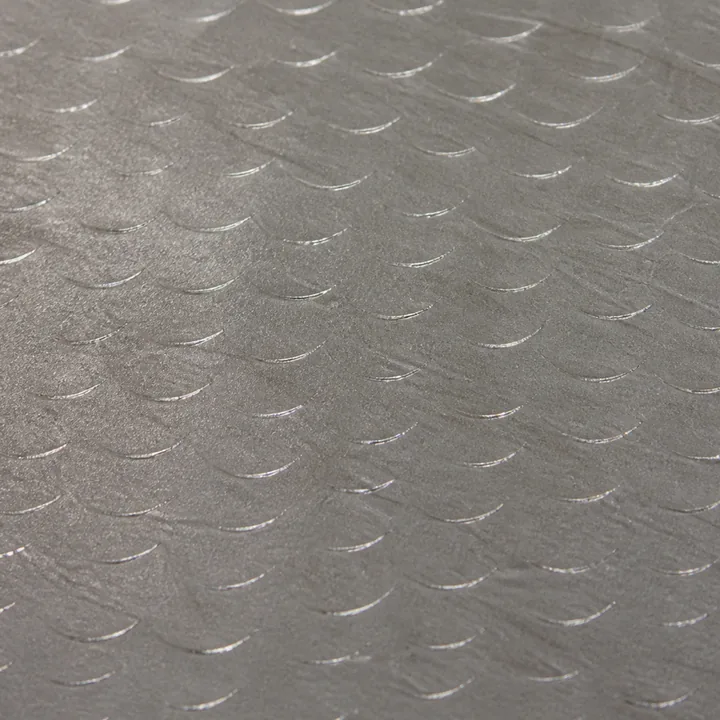

Close-up of a finished hand-flaked cast-iron slideway: crescent scraper marks in overlapping diagonal rows, each a thin bright sliver of cut metal. — Crescents cut in by hand, row on row across the slideway. The hollows hold the oil film.

03 Face

We fit the slideways with turcite or vesconite, the low-friction facings a rebuilt machine runs on.

04 Check

Schlesinger is the published set of acceptance tolerances a machine tool is measured against. We check the machine's geometry to that standard and sign it off.

Acceptance standard: SCHLESINGER
Slideway facing: TURCITE / VESCONITE
Scope: RESTORED TO ORIGINAL CONDITION AND ACCURACY
Permissible tolerances: —

Tolerances are set per machine on that job's own geometry report. We do not publish them here.

The firm

We have been in business since 1956. Uris Pavars took the firm over in the late 1970s to regrind and rebuild machine tools, and that has been the work ever since. Mr Pavars has since died. The firm passed into other hands and the work carries on as he set it up.

LATE 1970s

19561966197619861996200620162026

Founded
Regrinding and rebuilding of machine tools — continuous

45 years

Henning von Marschall's experience — 45 years against the firm's 70

Henning von Marschall
Technical Director
Forty-five years of experience, including training in Germany and Japan. Specialises in machine tools, rebuilding and repair.
Ico von Marschall
Financial Director
